My First Mobile Rig - Yaesu FT8800R

Product Information

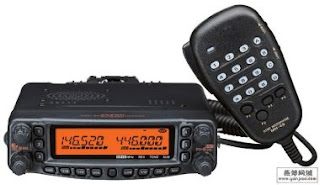

144/430 MHz Dual Band FM Transceiver
If you're ready for the best in a Dual-Band FM Mobile Transceiver, the FT-8800R is ready for you! With easy operation, outstanding receiver performance, and crossband repeat capability, the FT-8800R is the new standard of comparison!!

Wide Frequency Coverage

The FT-8800R provides extended receiver coverage beyond the Amateur bands, so you can keep informed of communication activities in the public safety, commercial, aircraft, and government communications ranges.

Independent Two-Channel Operation

The FT-8800R operates as two radios in one, with either 144 MHz or 430 MHz as the “Main” TX/RX band, while simultaneously monitoring the other band. Each band has its own Volume and Squelch controls. And, if you like, you can configure your FT-8800R for VHF-VHF or UHF-UHF operation, too!

High Power Output

To get your message through when it counts, the FT-8800R puts out a full 50 Watts of power on the 144 MHz band, and 35 Watts on 430 MHz. A thermal sensor monitors heat sink temperature, engaging the rear panel’s cooling fan only when needed.

Over 1000 Memory Channels

The FT-8800R provides a wide variety of memory resources, including 512 "regular" memories on each band, five "Home" channels for favorite frequencies, ten sets of band-edge memories on each band, and six "Hyper Memories" that store complete sets of transceiver operating status configuration.

Large, Easy-to-Read Liquid Crystal Display (LCD)

Affording easy viewing from a wide range of viewing angles, the LCD of the FT-8800R features Yaesu’s renowned Omni-Glow™ display illumination, with four illumination levels available for different environments. You’ll marvel at the crystal-clear frequency display and status indicators, whether you’re operating night or day!

Cross-Band Repeat Capability

For emergency work, or to extend the range of a hand-held unit, the FT-8800R includes Cross-Band Repeat capability, similar to that pioneered on our popular FT-8100R Dual Band FM Mobile!

One-Touch Band-Pattern

To save valuable time while operating a transceiver with the capability of the FT-8800R, the “Hyper Memory” feature allows you to store a complete set of configuration data for the two bands on which you’re operating. Besides the usual storage of frequency and tone data, Hyper Memory will store such setup parameters as Automatic Repeater Shift status, Packet parameters, Scanning mode, and VFO tracking configuration.

50-Tone CTCSS/104-Tone DCS (Digital Code Squelch) Tone Systems

Providing excellent performance even under difficult link conditions, Yaesu’s 50-tone sub-audible CTCSS and 104-tone DCS signaling systems ensure that you have full access to repeater and remote-base inputs, and the built-in CTCSS/DCS decoders allow silent listening on busy channels. Plus you get Tone Search Scanning, which will scan for the tone being received on an incoming signal, allowing you to match tones quickly when operating on a new repeater system.

User-Programmable Microphone Keys

Four programmable keys on the microphone allow you one-touch access to your favorite command functions. The commands available from the microphone replicate the corresponding front panel key functions, and include Band Change, VFO/Memory switching, Home Channel access, 1 MHz frequency steps, Power Output selection, Repeater Reverse, and CTCSS/DCS setup. Customize your microphone for your personal operating style!

Convenient Remote-Head Mounting Capability

With the FT-8800R and its optional YSK-8900 Separation Kit, mounting your radio is a breeze even in the tightest locations. The YSK-8900 includes a 20-foot (6 m) remote cable and mounting bracket for the front panel.

Download

Brochures FT-8800 Brochure ( 308.32 KB )
Manuals FT-8800R.pdf ( 1.39 MB )


Komen Dari Orang Baru 9W2CDE

Kelebihan Radio ini ialah Dual Band VHF dan UHF. Boleh berkomunikasi dengan Radio FRS. Jadi FRS yang dalam koleksi saya boleh digandingkan dengan radio ini. "Operates as two radios in one" boleh beroperasi menggunakan dua channel serentak. Tetapi dalam satu satu masa kita boleh transmit hanya satu channel saja. Yang satu channel lagi tu monitor saja. Dengan menggunakan Sirio Antenna 2070R saya dapat monitor pancaran dari pesawat dan airport, lori, rescue, ambulan dan banyak lagi. Saya berpuas hati dengan radio ini tetapi sedikit kesalan sebab dengan perbezaan harga yang sedikit sahaja saya boleh memiliki YAESU FT-8900R yang mempunyai kelebihan yang lebih banyak lagi.
